n8n 实操攻略 10：搭建发票处理机器人（下）

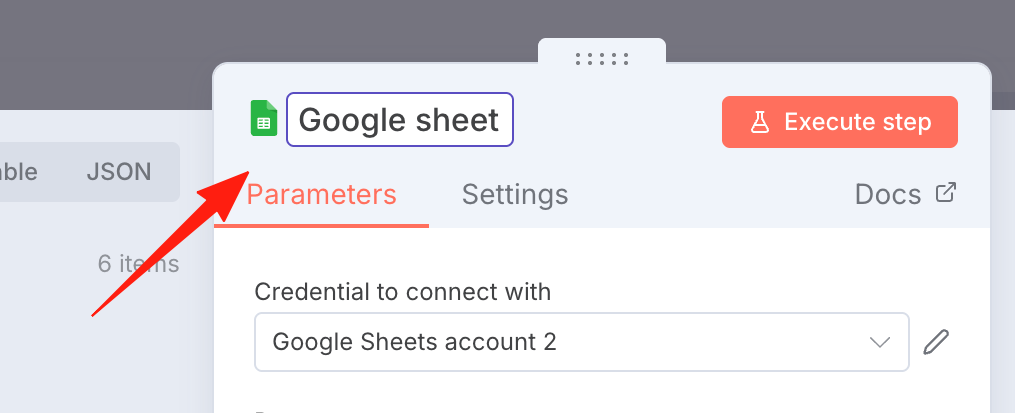

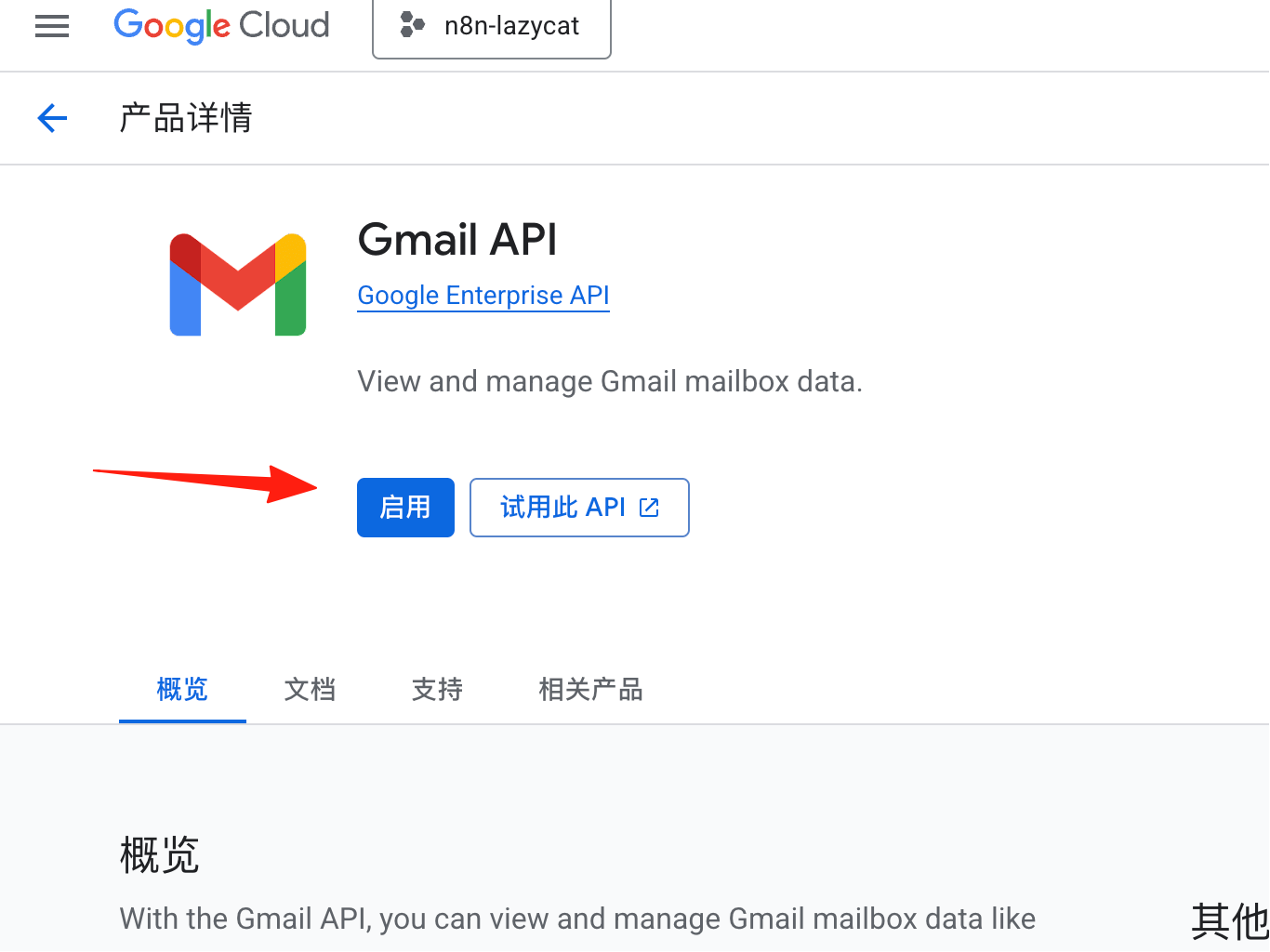

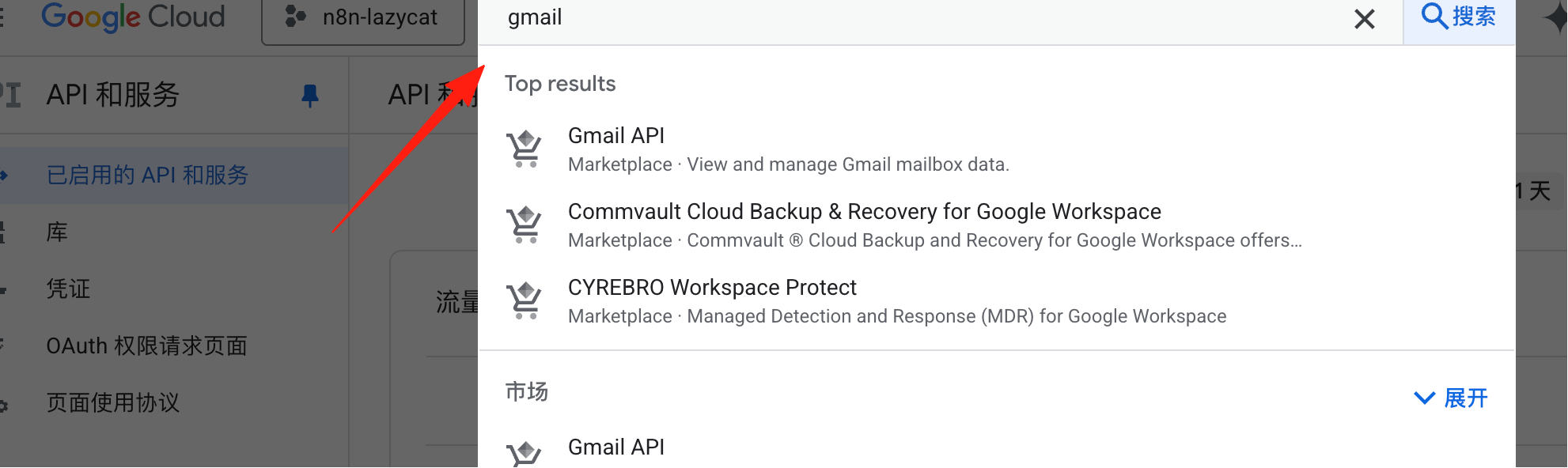

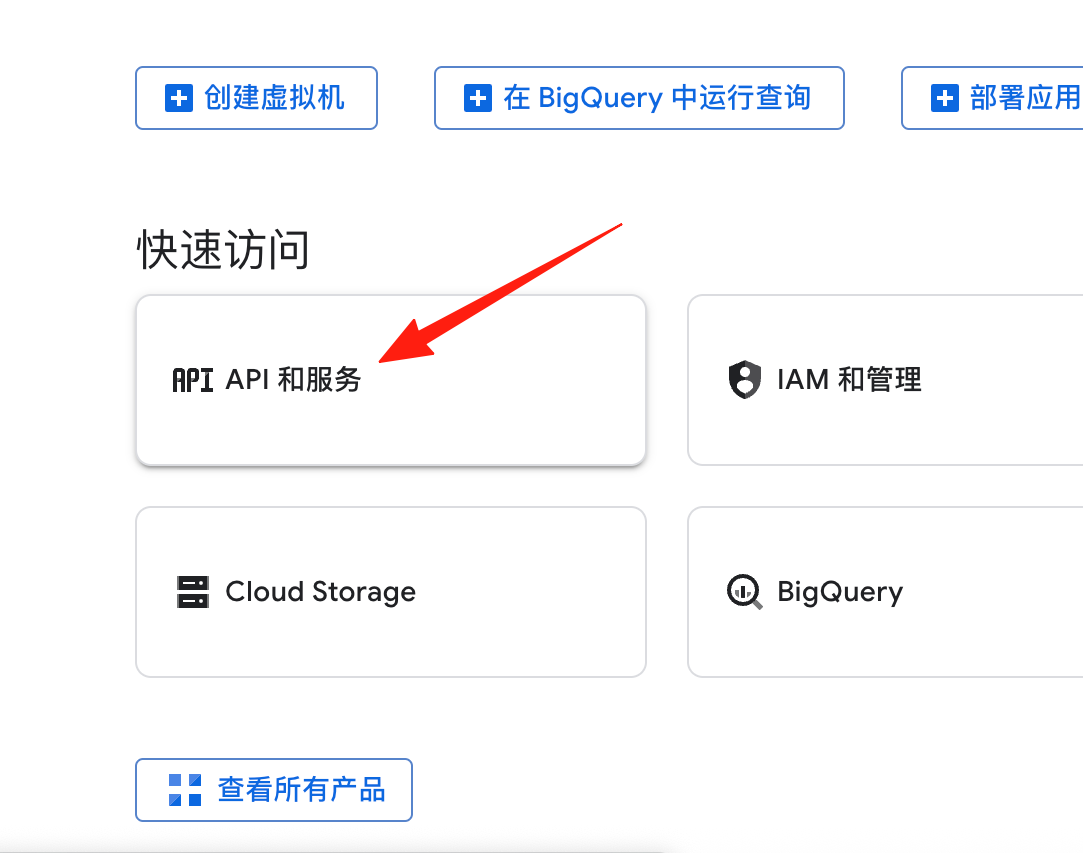

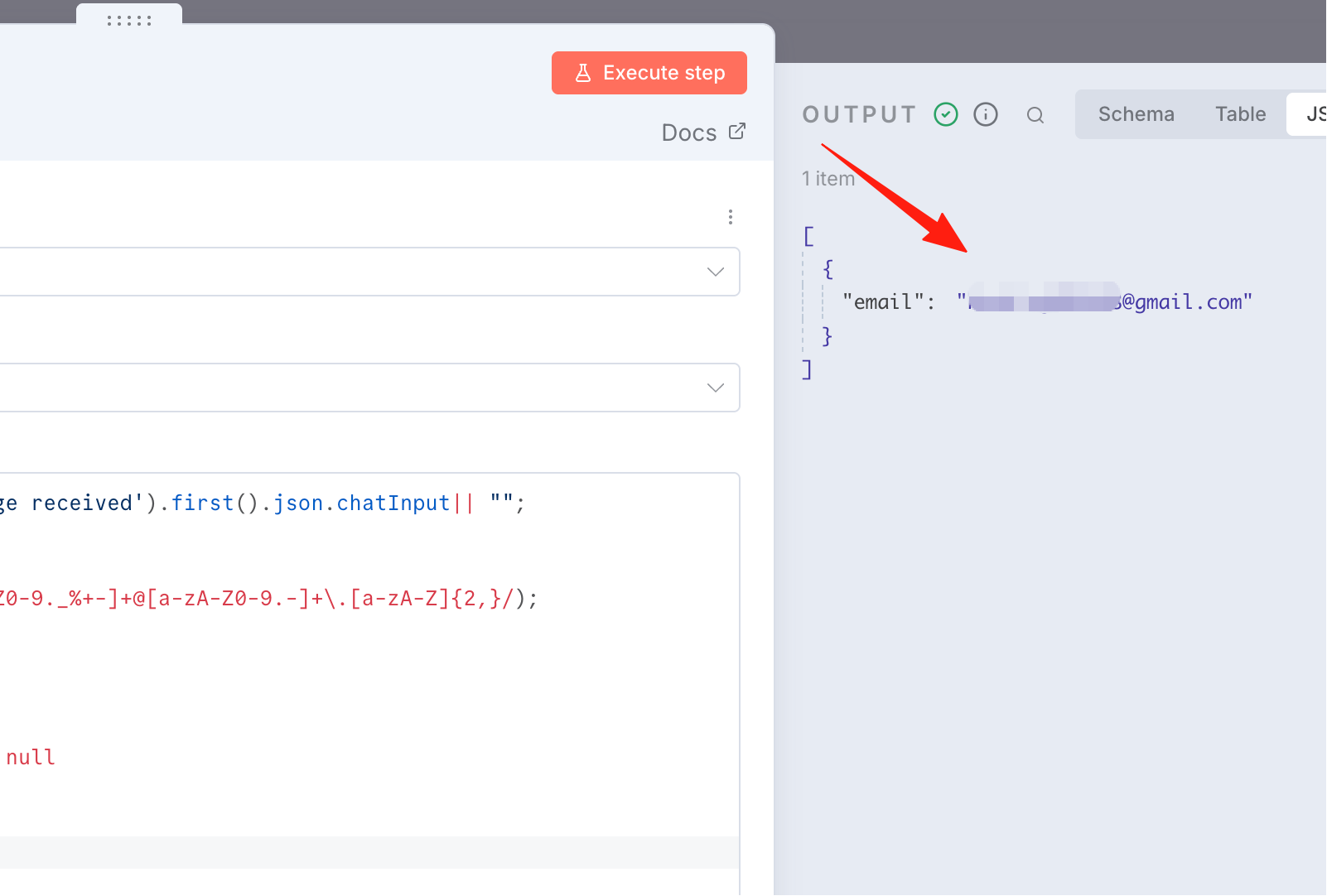

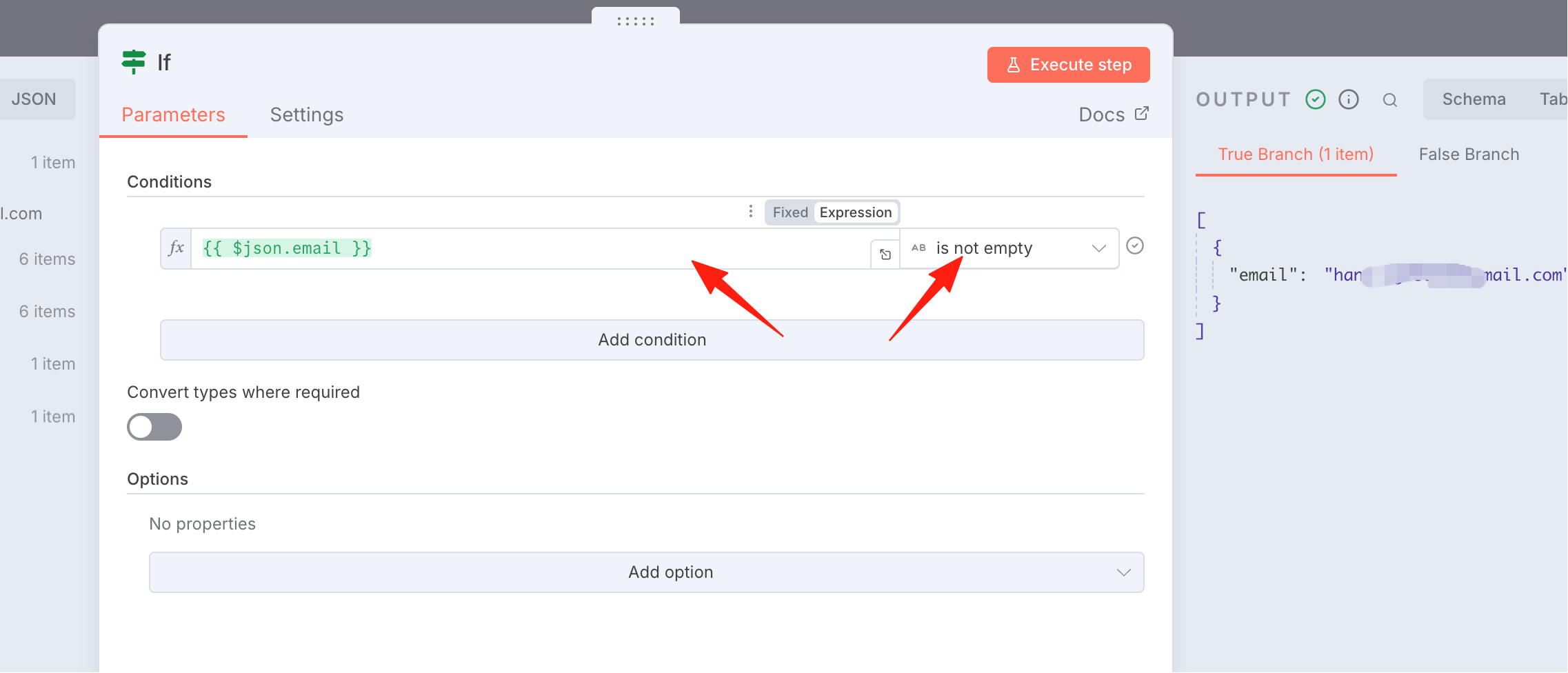

上一篇我们已经拿到了发票的信息，并且保存到了 Google 表格中，接下来，我们要把关键信息，发送到我们的邮箱中。 https://appstore.lazycat.cloud/#/shop/detail/cloud.lazycat.app.n8n ### 提取邮箱地址这一步需要把第一步中，我们输入的邮箱提取出来，参考代码 ``` const raw = $('When chat message received').first().json.chatInput|| ""; // 匹配第一个邮箱格式 const match = raw.match(/[a-zA-Z0-9._%+-]+@[a-zA-Z0-9.-]+\.[a-zA-Z]{2,}/); return [ { json: { email: match ? match[0] : null } } ]; ``` 执行后，可以看到能正常提取 ![image.png](https://dl.playground.lazycat.cloud/guidelines/496/e9af0e91-e540-48e9-adfc-1682744419c1.png "image.png") ### if判断这一步，如果我们识别出来了邮箱，并且不为空的话，就执行下一步 ![image.png](https://dl.playground.lazycat.cloud/guidelines/496/6bbf6c97-415d-4ca1-95b7-f446330e3b2c.png "image.png") ### 发邮件发邮件之前，可以把我们前面的节点名称改一下，方便我们看 ![image.png](https://dl.playground.lazycat.cloud/guidelines/496/35d4ce75-717a-4c9d-adfa-fa7ddf3285d7.png "image.png") 回到 Google [控制台](https://console.cloud.google.com) 点击 API 和服务 ![image.png](https://dl.playground.lazycat.cloud/guidelines/496/704755d3-3637-463a-b467-3d0b3e3a1dd5.png "image.png") 在这里搜索 Gmail ![image.png](https://dl.playground.lazycat.cloud/guidelines/496/d1cbe02c-55d1-4dff-b7f1-9c735ff66c70.png "image.png") 启用 API 的权限 ![image.png](https://dl.playground.lazycat.cloud/guidelines/496/e26e8263-aade-4da8-aedc-0e13084c07f3.png "image.png") 这时候，回到 n8n,新建一个凭证输入客户端 id 和密钥 ![image.png](https://dl.playground.lazycat.cloud/guidelines/496/99bd6296-f639-4fce-b141-e4029a1c9ec0.png "image.png") 授权成功会有提示 ![image.png](https://dl.playground.lazycat.cloud/guidelines/496/c59afaf1-6027-4375-b2bf-18280fe5f27c.png "image.png") 操作选择 send，邮箱就是我们识别出来的邮箱 ![image.png](https://dl.playground.lazycat.cloud/guidelines/496/3351cf06-41cb-4949-b9c8-9ffe559f8a4d.png "image.png") 邮件类型选择 html，message 参考下面的代码 ``` {{ $('GoogleSheets').first().json["发票标题"] || "发票" }} 发票号码：{{ $('GoogleSheets').first().json["发票号码"] || "" }}　开票日期：{{ $('GoogleSheets').first().json["开票日期"] || "" }} 购方信息名称：{{ $('GoogleSheets').first().json["购方名称"] || "" }} 税号：{{ $('GoogleSheets').first().json["购方税号"] || "" }} 备注：{{ $('GoogleSheets').first().json["购方备注"] || "" }} 销方信息名称：{{ $('GoogleSheets').first().json["销方名称"] || "" }} 税号：{{ $('GoogleSheets').first().json["销方税号"] || "" }} 商品 / 服务明细商品名称规格型号单位数量单价不含税金额税率税额 {{ $('GoogleSheets').first().json["商品名称"] || "" }} {{ $('GoogleSheets').first().json["规格型号"] || "" }} {{ $('GoogleSheets').first().json["单位"] || "" }} {{ $('GoogleSheets').first().json["数量"] || "" }} ¥{{ parseFloat($('GoogleSheets').first().json["单价"] || 0).toFixed(2) }} ¥{{ parseFloat($('GoogleSheets').first().json["不含税金额"] || 0).toFixed(2) }} {{ $('GoogleSheets').first().json["税率显示"] || (parseFloat($('GoogleSheets').first().json["税率"] || 0)*100).toFixed(0) + "%" }} ¥{{ parseFloat($('GoogleSheets').first().json["税额"] || 0).toFixed(2) }} 合计不含税金额： ¥{{ parseFloat($('GoogleSheets').first().json["合计不含税金额"] || 0).toFixed(2) }} 合计税额： ¥{{ parseFloat($('GoogleSheets').first().json["合计税额"] || 0).toFixed(2) }} 合计价税合计金额： ¥{{ parseFloat($('GoogleSheets').first().json["合计价税合计金额"] || 0).toFixed(2) }} 开票人：{{ $('GoogleSheets').first().json["开票人"] || "" }} ``` 点开看一下，如果不飙红并且能看到数据，说明是正常的 ![image.png](https://dl.playground.lazycat.cloud/guidelines/496/b632e975-a783-48a7-b5cd-b82a4c74929e.png "image.png") 点击执行，输出结果是正常的 ![image.png](https://dl.playground.lazycat.cloud/guidelines/496/617f619b-d986-4a13-b44c-7178f4fad423.png "image.png") 邮件也收到了 ![image.png](https://dl.playground.lazycat.cloud/guidelines/496/bd6eab1a-0a71-4fbe-a10c-ac2fb6b462fd.png "image.png") 打开邮件可以看到内容： ![image.png](https://dl.playground.lazycat.cloud/guidelines/496/178d60e3-79a6-4f4d-8c70-f61de80c1393.png "image.png") 以上就是发票机器人的完整流程。如果你想偷懒，可以直接导入我的 json 文件，再参考攻略，配置自己的节点就可以了 ``` { "name": "analyze image and send email", "nodes": [ { "parameters": { "jsCode": "// n8n Code 节点 - 发票数据解析\n// 获取输入数据（处理可能的字符串格式）\nconst inputData = $input.first().json.choices[0].message.content;\n\n// 如果输入是字符串，先解析为 JSON\nlet invoiceData;\nif (typeof inputData === 'string') {\n // 移除可能的 markdown 代码块标记\n const cleanData = inputData.replace(/^```json\\s*/, '').replace(/\\s*```$/, '').trim();\n invoiceData = JSON.parse(cleanData);\n} else {\n invoiceData = inputData;\n}\n\n// 提取发票数据\nconst invoice = invoiceData.invoice;\n\n// 返回扁平化的 JSON 数据\nreturn [{\n json: {\n title: invoice.title,\n invoiceNumber: invoice.number,\n issueDate: invoice.issue_date,\n currency: invoice.currency,\n issuer: invoice.issuer,\n buyerName: invoice.buyer.name,\n buyerTaxId: invoice.buyer.tax_id,\n buyerNote: invoice.buyer.note,\n sellerName: invoice.seller.name,\n sellerTaxId: invoice.seller.tax_id,\n itemName: invoice.items[0].name,\n itemSpec: invoice.items[0].spec,\n itemUnit: invoice.items[0].unit,\n quantity: invoice.items[0].quantity,\n unitPrice: invoice.items[0].unit_price,\n amountWithoutTax: invoice.items[0].amount_without_tax,\n taxRate: invoice.items[0].tax_rate,\n taxRateDisplay: invoice.items[0].tax_rate_display,\n taxAmount: invoice.items[0].tax_amount,\n subtotal: invoice.totals.amount_without_tax,\n totalTax: invoice.totals.tax_total,\n grandTotal: invoice.totals.amount_with_tax\n }\n}];" }, "type": "n8n-nodes-base.code", "typeVersion": 2, "position": [ 0, 200 ], "id": "70bef82b-f44f-4389-adc2-d1e41a1ef12a", "name": "Code" }, { "parameters": { "operation": "append", "documentId": { "__rl": true, "value": "1M6GJAC6j3fvzZd2EImGSyugzLRKwa_Ok5ODnL6q4PWo", "mode": "list", "cachedResultName": "发票", "cachedResultUrl": "https://docs.google.com/spreadsheets/d/1M6GJAC6j3fvzZd2EImGSyugzLRKwa_Ok5ODnL6q4PWo/edit?usp=drivesdk" }, "sheetName": { "__rl": true, "value": "gid=0", "mode": "list", "cachedResultName": "Sheet1", "cachedResultUrl": "https://docs.google.com/spreadsheets/d/1M6GJAC6j3fvzZd2EImGSyugzLRKwa_Ok5ODnL6q4PWo/edit#gid=0" }, "columns": { "mappingMode": "defineBelow", "value": { "发票标题": "={{ $json.title }}", "发票号码": "={{ $json.invoiceNumber }}", "开票日期": "={{ $json.issueDate }}", "购方名称": "={{ $json.buyerName }}", "购方税号": "={{ $json.buyerTaxId }}", "购方备注": "={{ $json.buyerNote }}", "销方名称": "={{ $json.sellerName }}", "商品名称": "={{ $json.itemName }}", "销方税号": "={{ $json.sellerTaxId }}", "规格型号": "={{ $json.itemSpec }}", "单位": "={{ $json.itemUnit }}", "数量": "={{ $json.quantity }}", "单价": "={{ $json.unitPrice }}", "不含税金额": "={{ $json.amountWithoutTax }}", "税率": "={{ $json.taxRate }}", "税率显示": "={{ $json.taxRateDisplay }}", "税额": "={{ $json.taxAmount }}", "合计不含税金额": "={{ $json.subtotal }}", "合计税额": "={{ $json.totalTax }}", "合计价税合计金额": "={{ $json.grandTotal }}", "开票人": "={{ $json.issuer }}" }, "matchingColumns": [], "schema": [ { "id": "发票标题", "displayName": "发票标题", "required": false, "defaultMatch": false, "display": true, "type": "string", "canBeUsedToMatch": true }, { "id": "发票号码", "displayName": "发票号码", "required": false, "defaultMatch": false, "display": true, "type": "string", "canBeUsedToMatch": true }, { "id": "开票日期", "displayName": "开票日期", "required": false, "defaultMatch": false, "display": true, "type": "string", "canBeUsedToMatch": true }, { "id": "购方名称", "displayName": "购方名称", "required": false, "defaultMatch": false, "display": true, "type": "string", "canBeUsedToMatch": true }, { "id": "购方税号", "displayName": "购方税号", "required": false, "defaultMatch": false, "display": true, "type": "string", "canBeUsedToMatch": true }, { "id": "购方备注", "displayName": "购方备注", "required": false, "defaultMatch": false, "display": true, "type": "string", "canBeUsedToMatch": true }, { "id": "销方名称", "displayName": "销方名称", "required": false, "defaultMatch": false, "display": true, "type": "string", "canBeUsedToMatch": true }, { "id": "销方税号", "displayName": "销方税号", "required": false, "defaultMatch": false, "display": true, "type": "string", "canBeUsedToMatch": true }, { "id": "商品名称", "displayName": "商品名称", "required": false, "defaultMatch": false, "display": true, "type": "string", "canBeUsedToMatch": true }, { "id": "规格型号", "displayName": "规格型号", "required": false, "defaultMatch": false, "display": true, "type": "string", "canBeUsedToMatch": true }, { "id": "单位", "displayName": "单位", "required": false, "defaultMatch": false, "display": true, "type": "string", "canBeUsedToMatch": true }, { "id": "数量", "displayName": "数量", "required": false, "defaultMatch": false, "display": true, "type": "string", "canBeUsedToMatch": true }, { "id": "单价", "displayName": "单价", "required": false, "defaultMatch": false, "display": true, "type": "string", "canBeUsedToMatch": true }, { "id": "不含税金额", "displayName": "不含税金额", "required": false, "defaultMatch": false, "display": true, "type": "string", "canBeUsedToMatch": true }, { "id": "税率", "displayName": "税率", "required": false, "defaultMatch": false, "display": true, "type": "string", "canBeUsedToMatch": true }, { "id": "税率显示", "displayName": "税率显示", "required": false, "defaultMatch": false, "display": true, "type": "string", "canBeUsedToMatch": true }, { "id": "税额", "displayName": "税额", "required": false, "defaultMatch": false, "display": true, "type": "string", "canBeUsedToMatch": true }, { "id": "合计不含税金额", "displayName": "合计不含税金额", "required": false, "defaultMatch": false, "display": true, "type": "string", "canBeUsedToMatch": true }, { "id": "合计税额", "displayName": "合计税额", "required": false, "defaultMatch": false, "display": true, "type": "string", "canBeUsedToMatch": true }, { "id": "合计价税合计金额", "displayName": "合计价税合计金额", "required": false, "defaultMatch": false, "display": true, "type": "string", "canBeUsedToMatch": true }, { "id": "开票人", "displayName": "开票人", "required": false, "defaultMatch": false, "display": true, "type": "string", "canBeUsedToMatch": true } ], "attemptToConvertTypes": false, "convertFieldsToString": false }, "options": {} }, "type": "n8n-nodes-base.googleSheets", "typeVersion": 4.6, "position": [ 260, 80 ], "id": "9a9b3088-7722-4dd5-b2b7-28726fd64f8f", "name": "Google Sheets", "credentials": { "googleSheetsOAuth2Api": { "id": "jflKNS6HMBOKZok2", "name": "Google Sheets account" } } }, { "parameters": { "jsCode": "const raw = $('When chat message received').first().json.chatInput|| \"\";\n\n// 匹配第一个邮箱格式\nconst match = raw.match(/[a-zA-Z0-9._%+-]+@[a-zA-Z0-9.-]+\\.[a-zA-Z]{2,}/);\n\nreturn [\n {\n json: {\n email: match ? match[0] : null\n }\n }\n];\n" }, "type": "n8n-nodes-base.code", "typeVersion": 2, "position": [ 420, -80 ], "id": "5e71f0be-bebb-42ac-9d64-413d98b4e5db", "name": "Code1" }, { "parameters": { "conditions": { "options": { "caseSensitive": true, "leftValue": "", "typeValidation": "strict", "version": 2 }, "conditions": [ { "id": "a44e6c17-4473-4dfe-bab9-5c98caa8fa31", "leftValue": "={{ $json.email }}", "rightValue": "", "operator": { "type": "string", "operation": "notEmpty", "singleValue": true } } ], "combinator": "and" }, "options": {} }, "type": "n8n-nodes-base.if", "typeVersion": 2.2, "position": [ 640, -80 ], "id": "e50264b2-51e1-4c2a-bb0d-66447b6f3b0d", "name": "If" }, { "parameters": { "sendTo": "={{ $json.email }}", "subject": "发票", "message": "=\n \n \n \n {{ $('Google Sheets').item.json[\"发票标题\"] || \"发票\" }}\n \n \n 发票号码：{{ $('Google Sheets').item.json[\"发票号码\"] || \"\" }}　\n 开票日期：{{ $('Google Sheets').item.json[\"开票日期\"] || \"\" }}　\n \n \n \n\n \n \n \n \n 购方信息\n 名称：{{ $('Google Sheets').item.json[\"购方名称\"] || \"\" }}\n 税号：{{ $('Google Sheets').item.json[\"购方税号\"] || \"\" }}\n 备注：{{ $('Google Sheets').item.json[\"购方备注\"] || \"\" }}\n \n \n 销方信息\n 名称：{{ $('Google Sheets').item.json[\"销方名称\"] || \"\" }}\n 税号：{{ $('Google Sheets').item.json[\"销方税号\"] || \"\" }}\n \n \n \n\n \n \n 商品 / 服务明细\n \n \n \n 商品名称\n 规格型号\n 单位\n 数量\n 单价\n 不含税金额\n 税率\n 税额\n \n \n \n \n {{ $('Google Sheets').item.json[\"商品名称\"] || \"\" }}\n {{ $('Google Sheets').item.json[\"规格型号\"] || \"\" }}\n {{ $('Google Sheets').item.json[\"单位\"] || \"\" }}\n {{ $('Google Sheets').item.json[\"数量\"] ?? \"\" }}\n {{ Number($('Google Sheets').item.json[\"单价\"] ?? 0).toFixed(6) }}\n {{ Number($('Google Sheets').item.json[\"不含税金额\"] ?? 0).toFixed(2) }}\n \n {{ $('Google Sheets').item.json[\"税率显示\"] || (Number($('Google Sheets').item.json[\"税率\"] ?? 0)*100).toFixed(0) + \"%\" }}\n \n {{ Number($('Google Sheets').item.json[\"税额\"] ?? 0).toFixed(2) }}\n \n \n \n \n\n \n \n \n \n 合计不含税金额：\n \n {{ Number($('Google Sheets').item.json[\"合计不含税金额\"] ?? 0).toFixed(2) }}\n \n \n \n 合计税额：\n \n {{ Number($('Google Sheets').item.json[\"合计税额\"] ?? 0).toFixed(2) }}\n \n \n \n 合计价税合计金额：\n \n {{ Number($('Google Sheets').item.json[\"合计价税合计金额\"] ?? 0).toFixed(2) }}\n \n \n \n \n\n \n \n 开票人：{{ $('Google Sheets').item.json[\"开票人\"] || \"\" }}\n \n\n", "options": {} }, "type": "n8n-nodes-base.gmail", "typeVersion": 2.1, "position": [ 1060, -60 ], "id": "16486451-dabf-48d7-98a9-77851add9d47", "name": "Gmail", "webhookId": "7f924497-ae8b-4b4e-8cad-3b4cd7a162d9", "credentials": { "gmailOAuth2": { "id": "lLR0rjkd7MVl0WuY", "name": "Gmail account" } } }, { "parameters": { "options": { "allowFileUploads": true } }, "type": "@n8n/n8n-nodes-langchain.chatTrigger", "typeVersion": 1.1, "position": [ -760, 200 ], "id": "7e8689a3-250d-466a-a4b1-1e42a8f014d4", "name": "When chat message received", "webhookId": "d7c99574-86d3-42f4-adf2-69f9fc1f7d3d" }, { "parameters": { "method": "POST", "url": "https://api.imgbb.com/1/upload?expiration=6000&key=80ddf220f655b5887b8a5eeee2a3652e", "sendBody": true, "contentType": "multipart-form-data", "bodyParameters": { "parameters": [ { "parameterType": "formBinaryData", "name": "image", "inputDataFieldName": "data0" } ] }, "options": {} }, "type": "n8n-nodes-base.httpRequest", "typeVersion": 4.2, "position": [ -560, 200 ], "id": "0849a0c5-dafc-4af7-ac7d-8b463df5abb9", "name": "IMGBB" }, { "parameters": { "method": "POST", "url": "https://api.gpt.ge/v1/chat/completions", "authentication": "genericCredentialType", "genericAuthType": "httpHeaderAuth", "sendHeaders": true, "headerParameters": { "parameters": [ { "name": "Content-Type", "value": "application/json" } ] }, "sendBody": true, "specifyBody": "json", "jsonBody": "={\n \"model\": \"gpt-4o\",\n \"messages\": [\n {\n \"role\": \"user\",\n \"content\": [\n {\n \"type\": \"text\",\n \"text\": \"## 角色\\n你是一个专业的\\\"发票信息抽取器\\\"。输入是一段发票文字（可能来自 OCR、邮件正文或聊天粘贴），输出是严格有效的 JSON，适合直接写入数据库/Google Sheets。\\n## 任务\\n从给定的发票文本中识别并抽取字段，返回单个 JSON 对象，放在一个标记代码块里（json ... ）。不要输出任何解释、注释或多余字符。\\n## 输出要求\\n仅输出一个 JSON 代码块，不得包含额外文字。\\n不存在或不确定的值一律填 null。\\n日期统一为 YYYY-MM-DD（ISO 8601）；\\n金额/数量等数值字段用数字类型（而非字符串），保留精度但不要添加货币符号或千分位。\\n税率使用小数（例如 1% → 0.01），并同时提供显示字段（例如 \\\"1%\\\"）。\\nitems 数组必须存在；若无行项目，输出空数组 []。\\n## 字段定义（Schema）\\n{\\n \\\"invoice\\\": {\\n \\\"title\\\": \\\"string|null\\\",\\n \\\"number\\\": \\\"string|null\\\",\\n \\\"issue_date\\\": \\\"YYYY-MM-DD|null\\\",\\n \\\"currency\\\": \\\"string|null\\\",\\n \\\"buyer\\\": {\\n \\\"name\\\": \\\"string|null\\\",\\n \\\"tax_id\\\": \\\"string|null\\\",\\n \\\"note\\\": \\\"string|null\\\"\\n },\\n \\\"seller\\\": {\\n \\\"name\\\": \\\"string|null\\\",\\n \\\"tax_id\\\": \\\"string|null\\\"\\n },\\n \\\"items\\\": [\\n {\\n \\\"name\\\": \\\"string|null\\\",\\n \\\"spec\\\": \\\"string|null\\\",\\n \\\"unit\\\": \\\"string|null\\\",\\n \\\"quantity\\\": \\\"number|null\\\",\\n \\\"unit_price\\\": \\\"number|null\\\",\\n \\\"amount_without_tax\\\": \\\"number|null\\\",\\n \\\"tax_rate\\\": \\\"number|null\\\",\\n \\\"tax_rate_display\\\": \\\"string|null\\\",\\n \\\"tax_amount\\\": \\\"number|null\\\"\\n }\\n ],\\n \\\"totals\\\": {\\n \\\"amount_without_tax\\\": \\\"number|null\\\",\\n \\\"tax_total\\\": \\\"number|null\\\",\\n \\\"amount_with_tax\\\": \\\"number|null\\\"\\n },\\n \\\"issuer\\\": \\\"string|null\\\"\\n }\\n}\"\n },\n {\n \"type\": \"image_url\",\n \"image_url\": {\n \"url\": \"{{ $json.data.url }}\"\n }\n }\n ]\n }\n ]\n} ", "options": {} }, "type": "n8n-nodes-base.httpRequest", "typeVersion": 4.2, "position": [ -240, 200 ], "id": "24b25ed1-18d8-4c8a-9d2e-d903168e9b8e", "name": "识别图片", "retryOnFail": true, "credentials": { "httpHeaderAuth": { "id": "BKtGro8HEgz5LcZM", "name": "V3 Header Auth account" } } } ], "pinData": {}, "connections": { "Code": { "main": [ [ { "node": "Google Sheets", "type": "main", "index": 0 } ] ] }, "Google Sheets": { "main": [ [ { "node": "Code1", "type": "main", "index": 0 } ] ] }, "Code1": { "main": [ [ { "node": "If", "type": "main", "index": 0 } ] ] }, "If": { "main": [ [ { "node": "Gmail", "type": "main", "index": 0 } ] ] }, "When chat message received": { "main": [ [ { "node": "IMGBB", "type": "main", "index": 0 } ] ] }, "IMGBB": { "main": [ [ { "node": "识别图片", "type": "main", "index": 0 } ] ] }, "识别图片": { "main": [ [ { "node": "Code", "type": "main", "index": 0 } ] ] } }, "active": false, "settings": { "executionOrder": "v1" }, "versionId": "fb865209-ec18-41a6-b252-def147580997", "meta": { "templateCredsSetupCompleted": true, "instanceId": "3cb07a731a78af260d8c81716bfc0e842ef01e898e945b902a3871e6a1cd0d48" }, "id": "OWymQVChmL3XifYL", "tags": [] } ```
